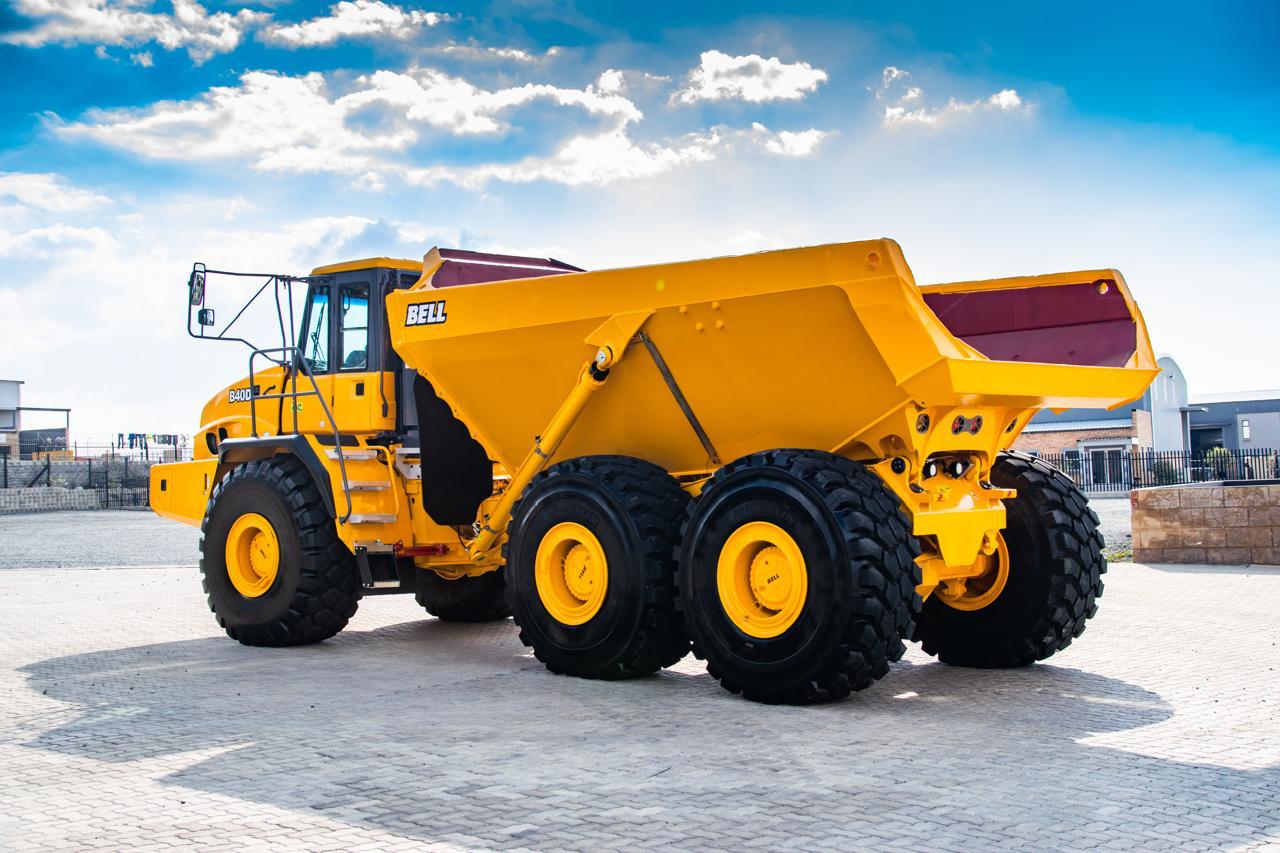

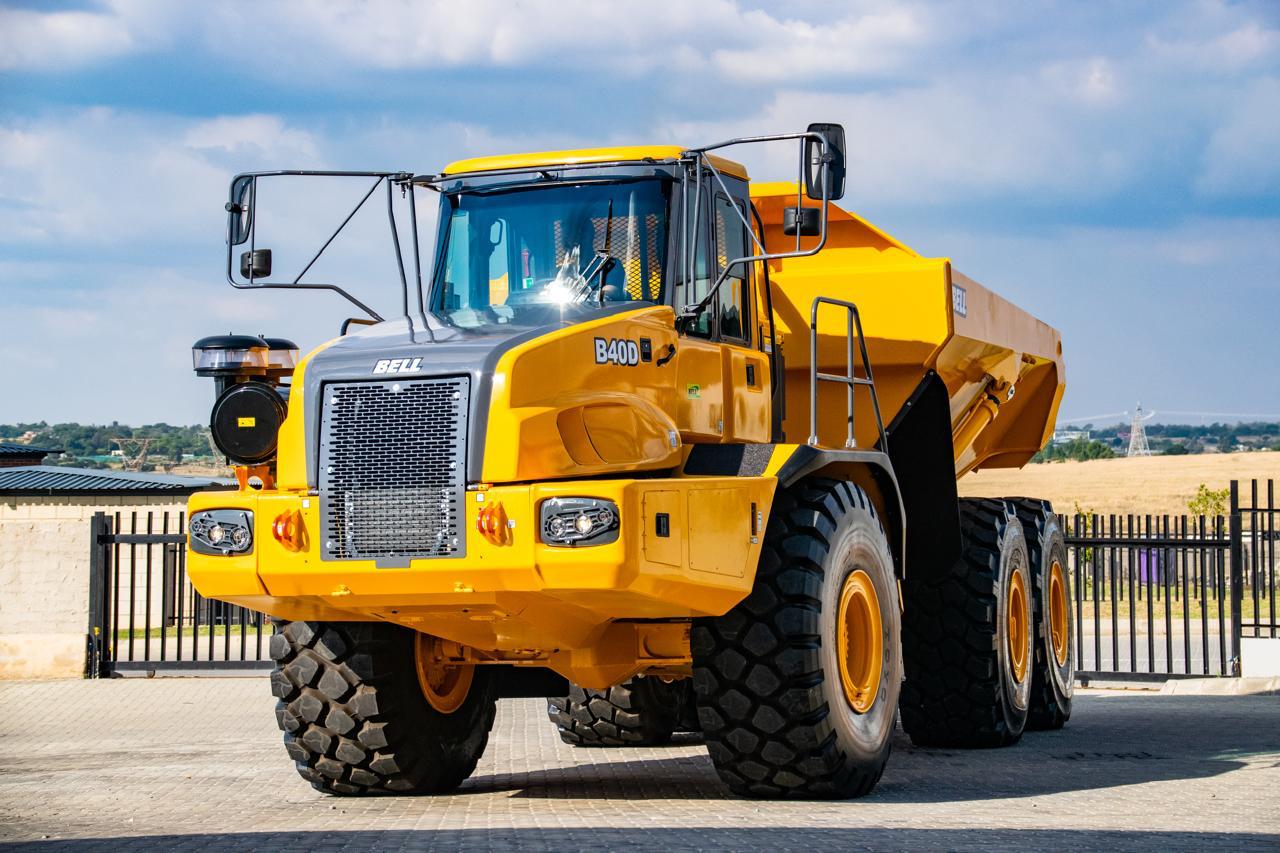

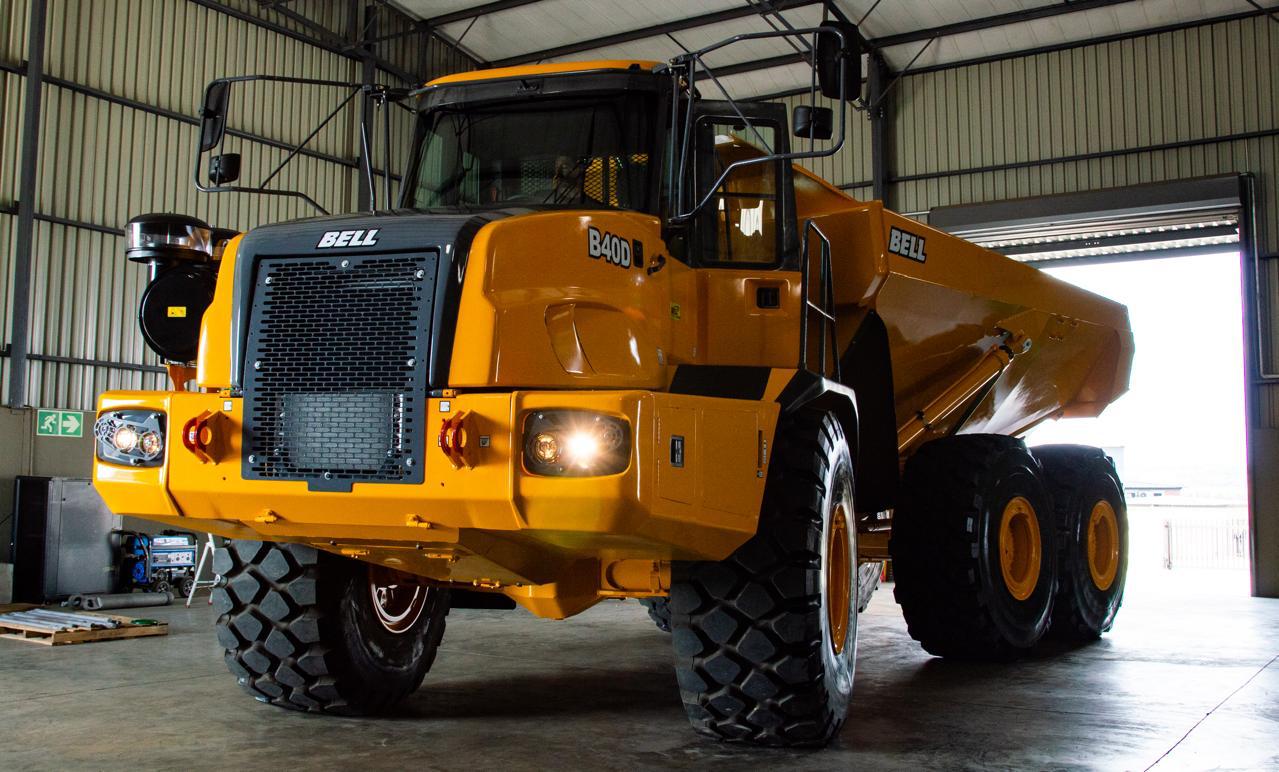

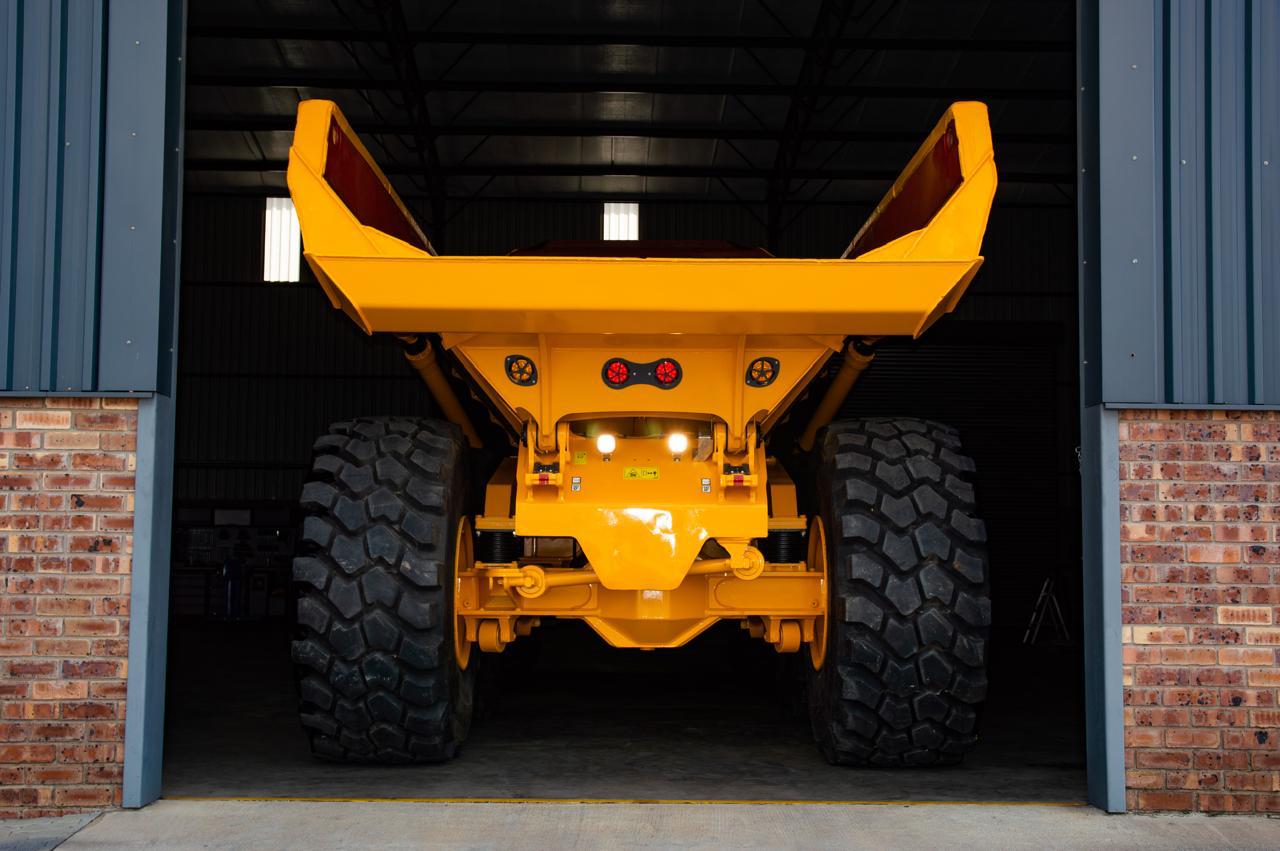

• Heavy-duty articulated dump truck designed for mining and earthmoving applications
• Excellent traction and stability in difficult terrain
• High payload capability for increased productivity
• Powerful Mercedes-Benz diesel engine

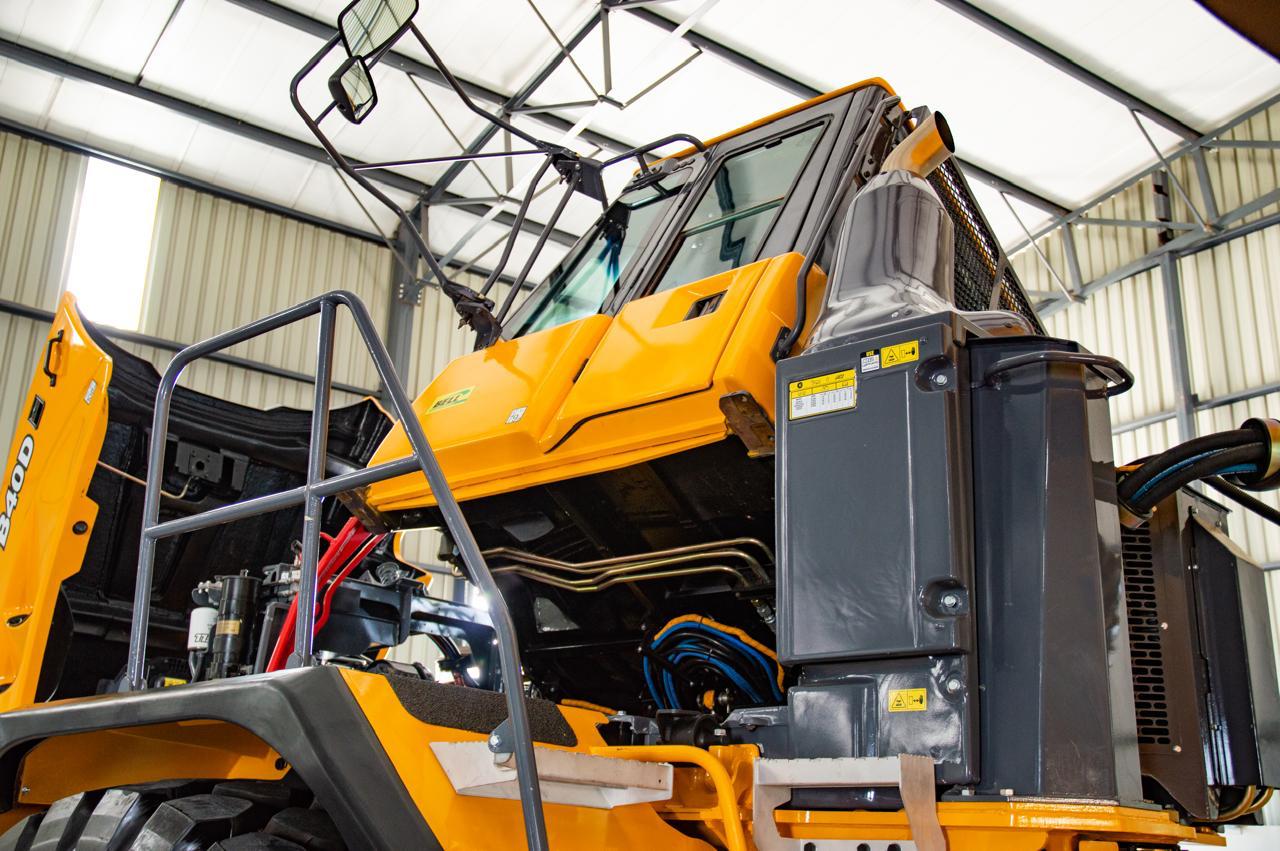

• Comfortable operator cab with air conditioning
• Robust chassis design for long-term durability

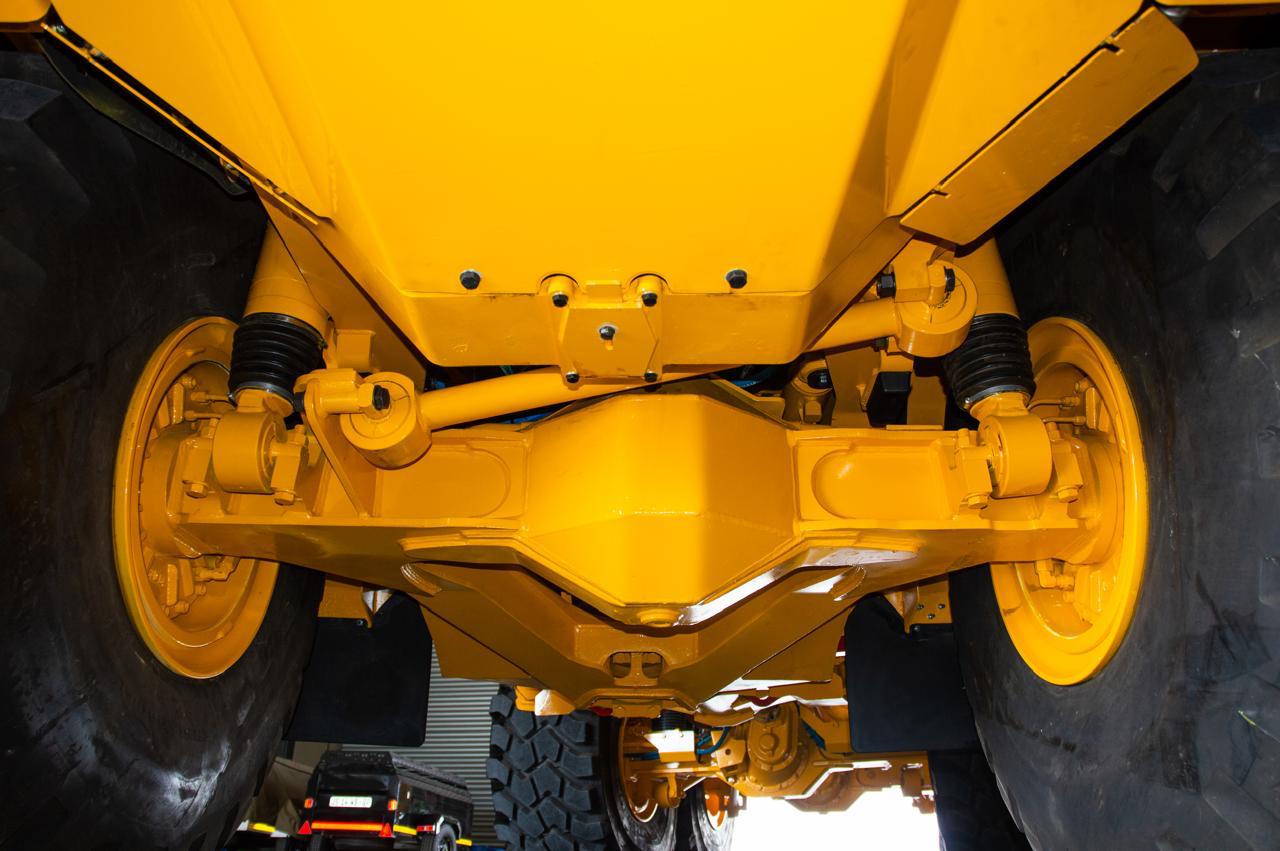

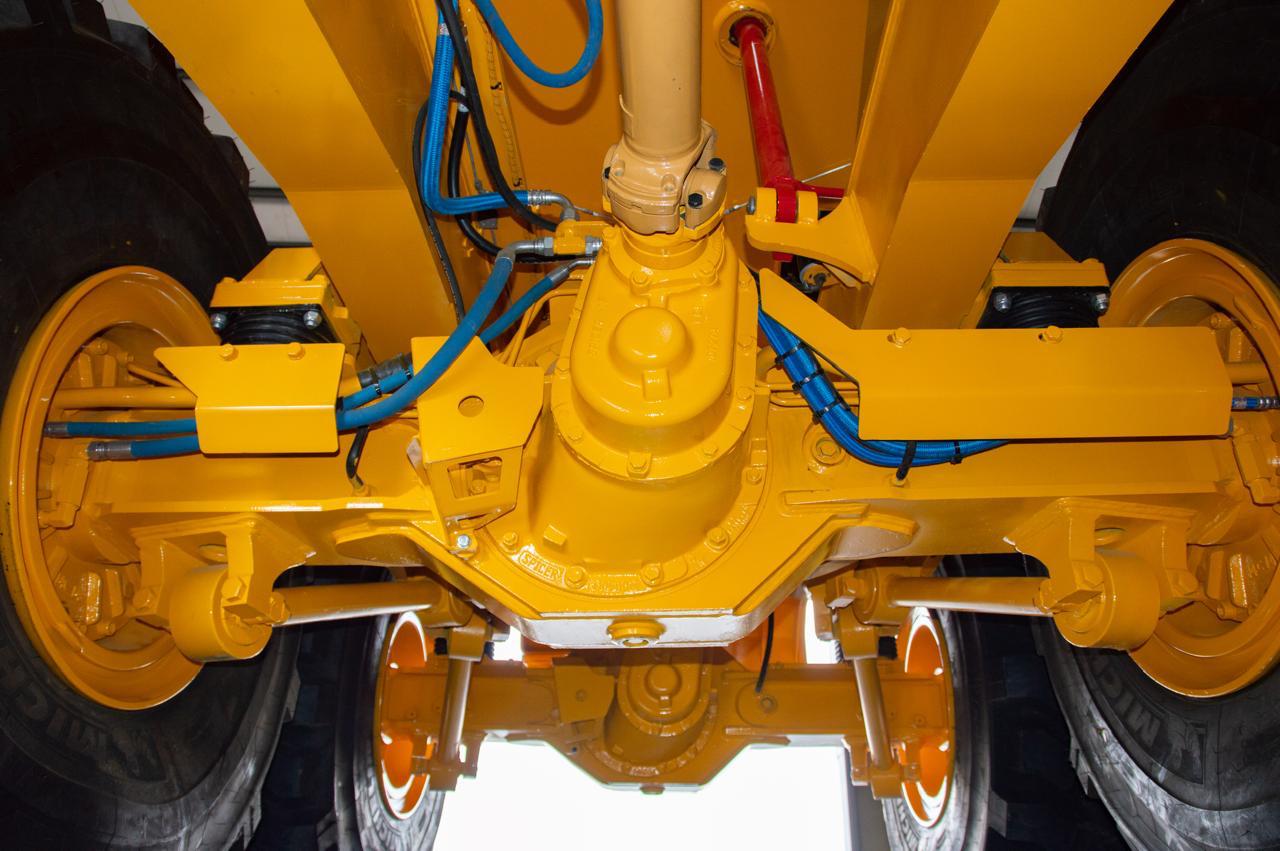

• Reliable drivetrain and transmission system
• Built for demanding operating environments
• Strong performance in wet and uneven ground conditions

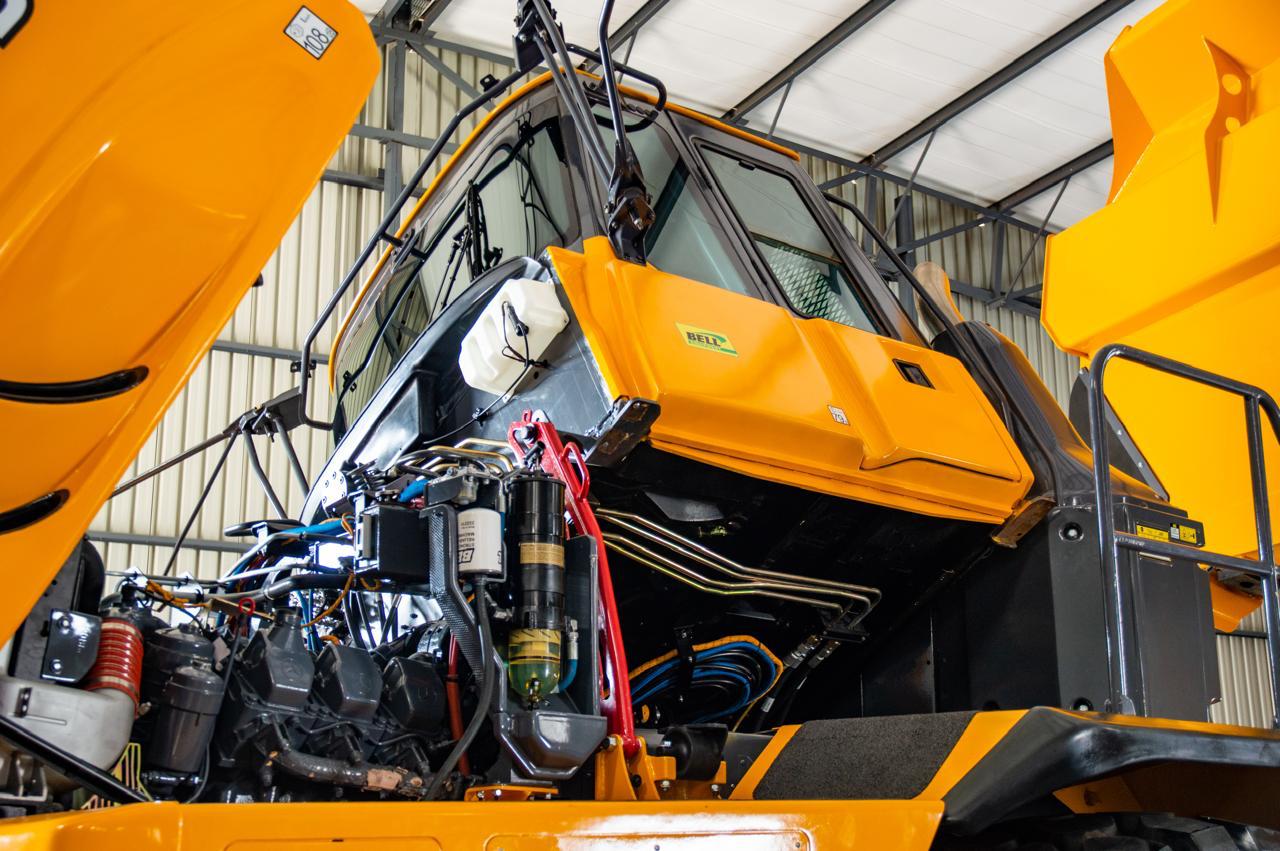

• Easy service access for maintenance efficiency

Operating Weight (Unladen): Approx. 29,850 kg
Loaded Weight: Approx. 66,851 kg
Rated Payload Capacity: 37,000 kg

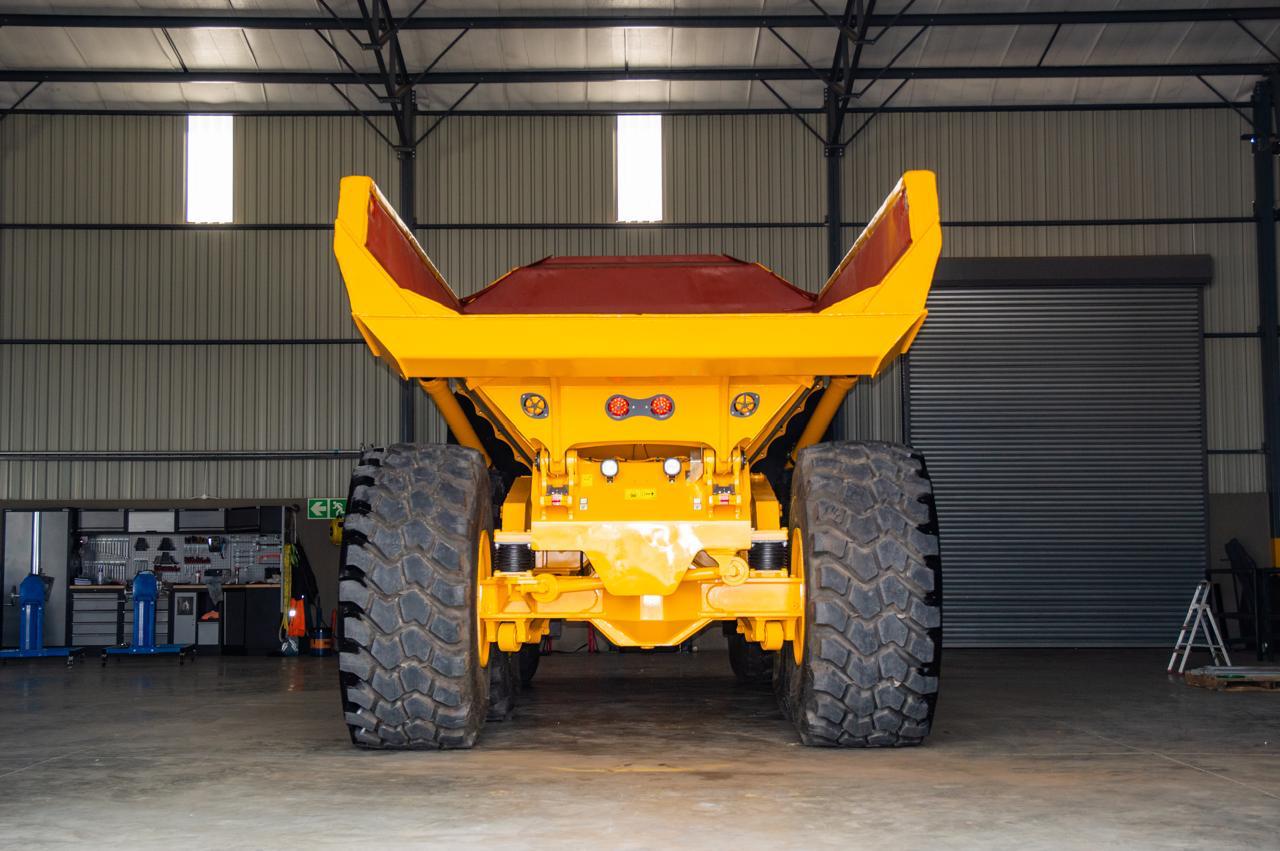

Heaped Body Capacity: 23 m³
Travel Speed: Up to 54 km/h
Drive Configuration: 6x6 Articulated Drive

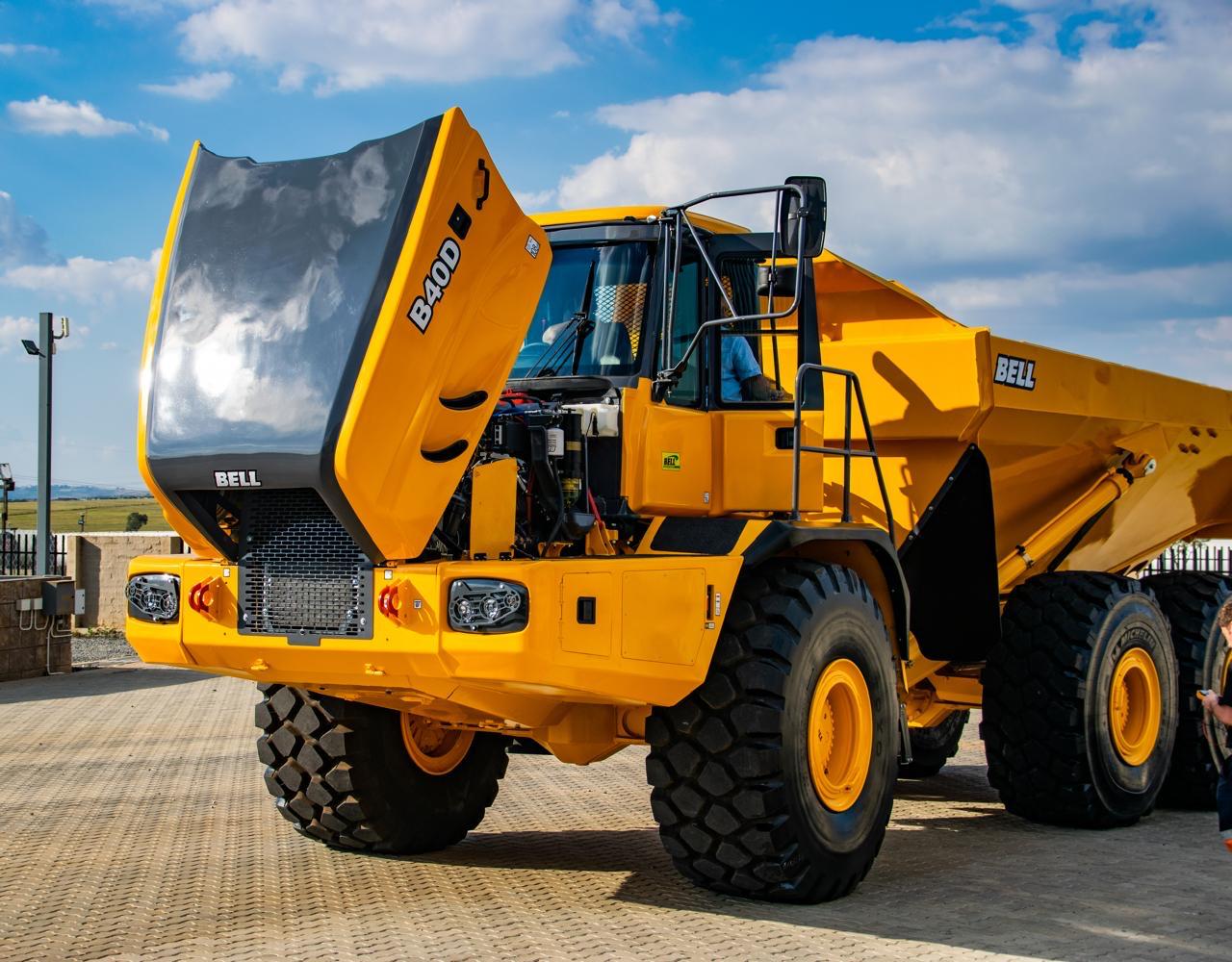

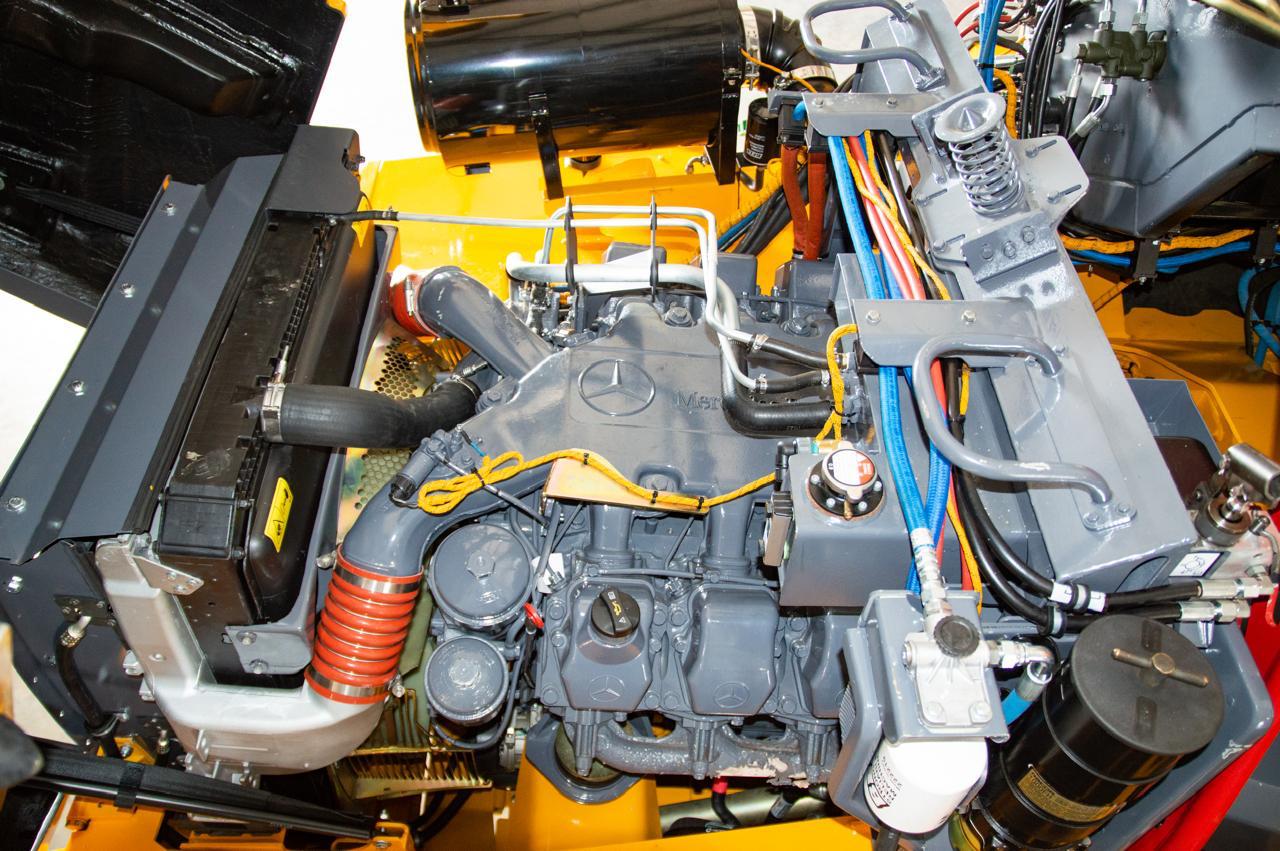

Engine: Mercedes-Benz OM501 LA
Engine Type: Turbocharged Diesel
Engine Power: 335 kW / 449 HP
Engine Displacement: 11.95 L
Maximum Torque: 2,200 Nm

Transmission: Automatic

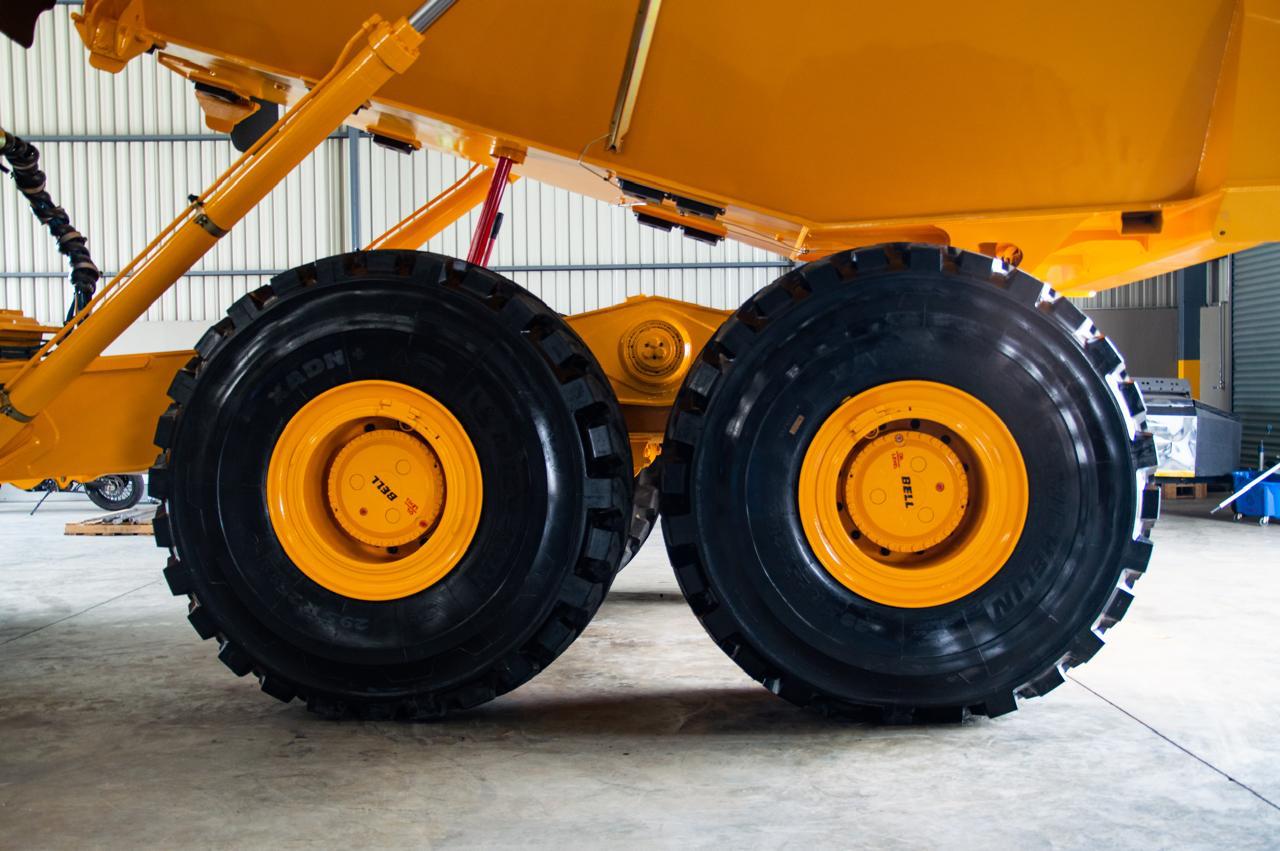

Tyre Size: 29.5 R25

Dimensions

Length: Approx. 10.5 m
Width: Approx. 3.36 m
Height: Approx. 3.85 m

Turning Radius: Approx. 9.2 m

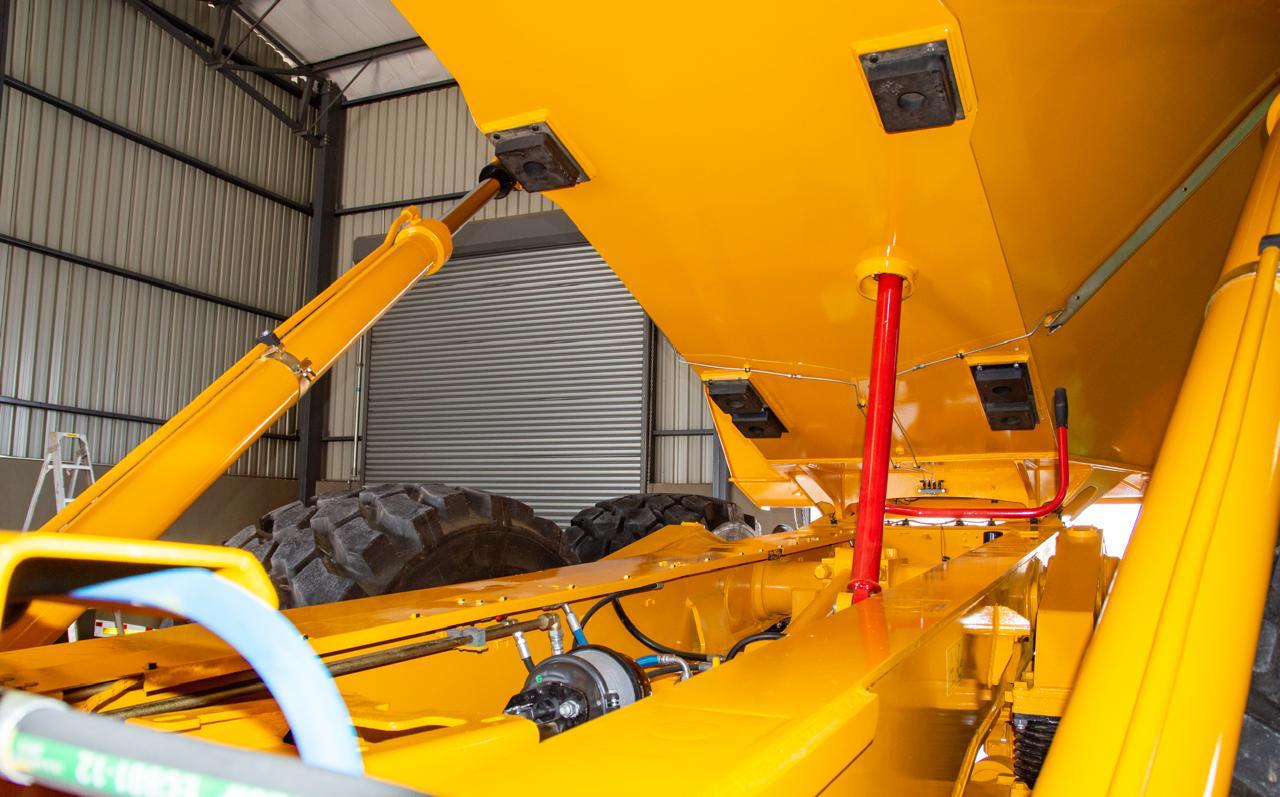

Dump Performance

Raise Time: Approx. 13 seconds
Lower Time: Approx. 7.6 seconds
Dump Angle: 70° (LECTURA Specs)

At EPC Namibia, we understand the demands of mining and heavy equipment operations. Our team supplies quality equipment backed by industry knowledge and support you can rely on. We focus on delivering machines that are ready for work and built to perform in harsh operating environments.

From equipment sourcing to support and parts solutions, EPC Namibia is committed to keeping your operation moving.
